Data

Data

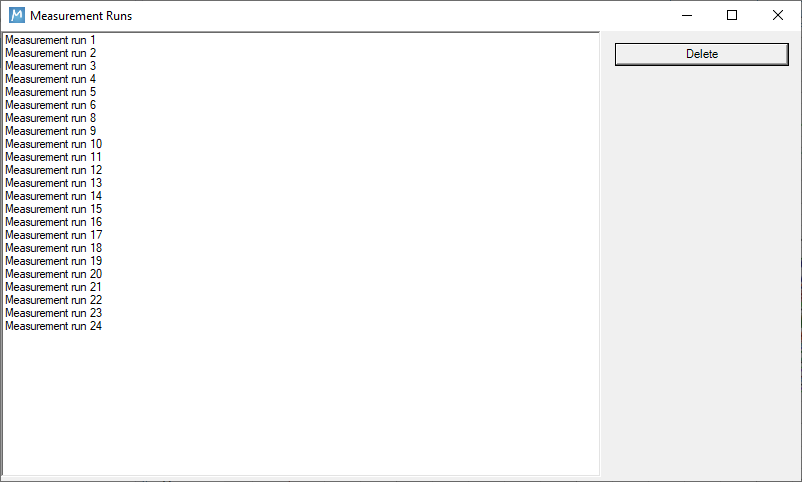

Edit measurement runs

The function shows a list of all measurements in a separate window. Various measurement runs can be selected or deleted. If there isn't any measurement in the loaded project, the list will be empty.

Edit Measurement Runs

Load data with project

Load measurement data together with a project. The software will open a dialog to select the target Measmatic data file (*.mmdat).

Load data

Load measurement data without (re)loading a project. The software will open a dialog to select the target Measmatic data file (*.mmdat).

Save data

Save the current measurement data from the project into a Measmatic data file (*.mmdat).

Load reference data

Reference data is a user-defined list of measurements (e.g. SPC measurement) that can be com- pared with actual measurement values to evaluate devices. The function loads reference data without (re)loading the project. The software will open a dialog to select the target Measmatic data file (*.mmdat).

Load reference data project

Load reference data together with a project. The software will open a dialog to select the target Measmatic data file (*.mmdat).

Clear reference data

Clear the current reference data.
