Project settings

Project Settings

The project settings menu is an overview of all general settings and Measmatic behavior during a test. The settings are placed in groups according to their characterization. Refer to the table below for a detailed description of all project settings.

Meta data

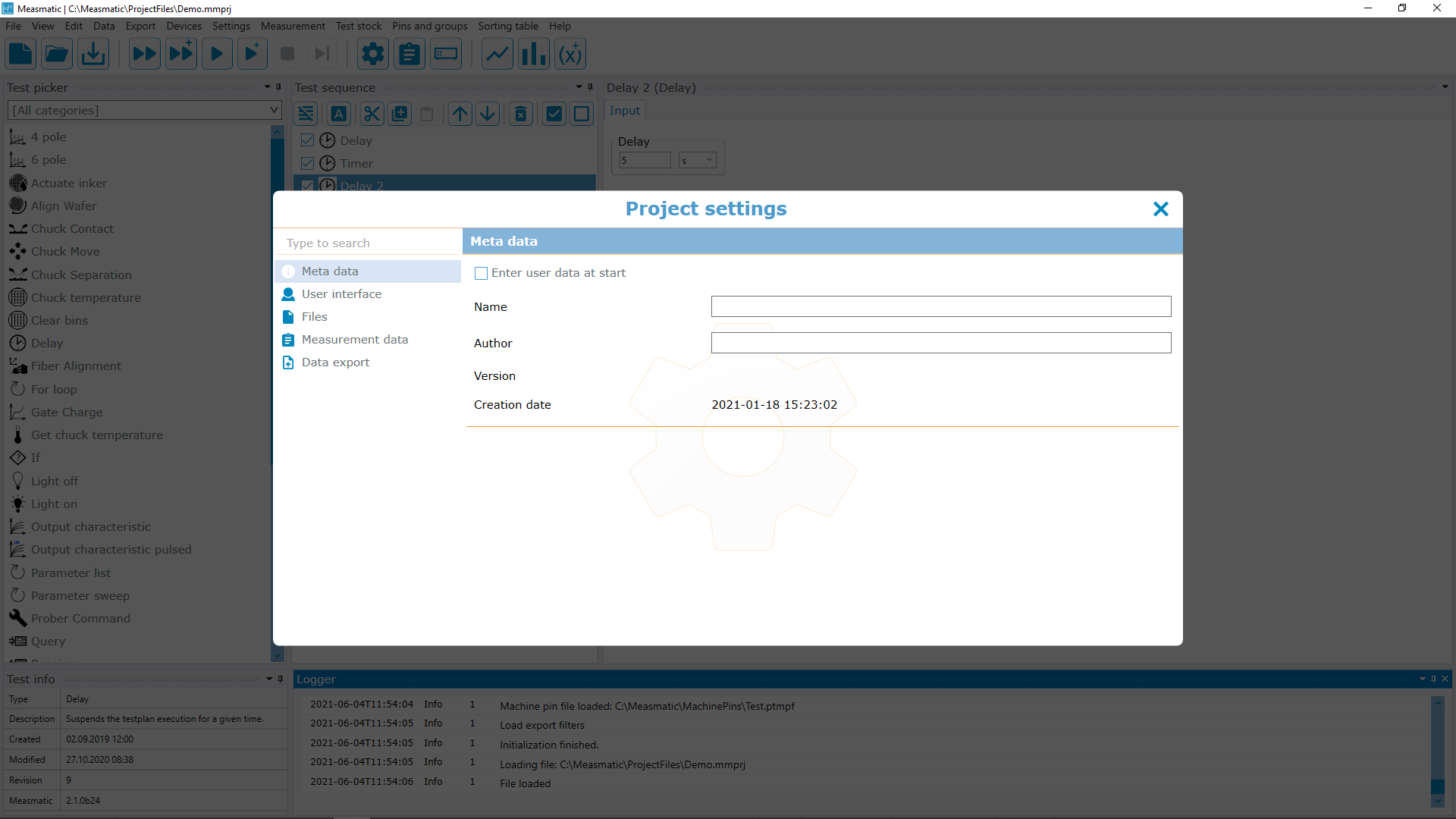

Project Settings - Meta data

Function	Description
Enter user data at measurement start	When executing a test, the Measurement Info page (see measurement information) will be opened in advance. The user can add information like a BarCode or Lot, input information will be stored in the test data output file
Name	User-defined name that will be stored in the test data output file
Author	Project author name that will be stored in the test data output file
Version	Project version that will be stored in the test data output file (not editable)
Creation Date	Creation date of the project settings that will be stored in the test data output file (not editable)

Table: Project Settings - Meta data

User Interface

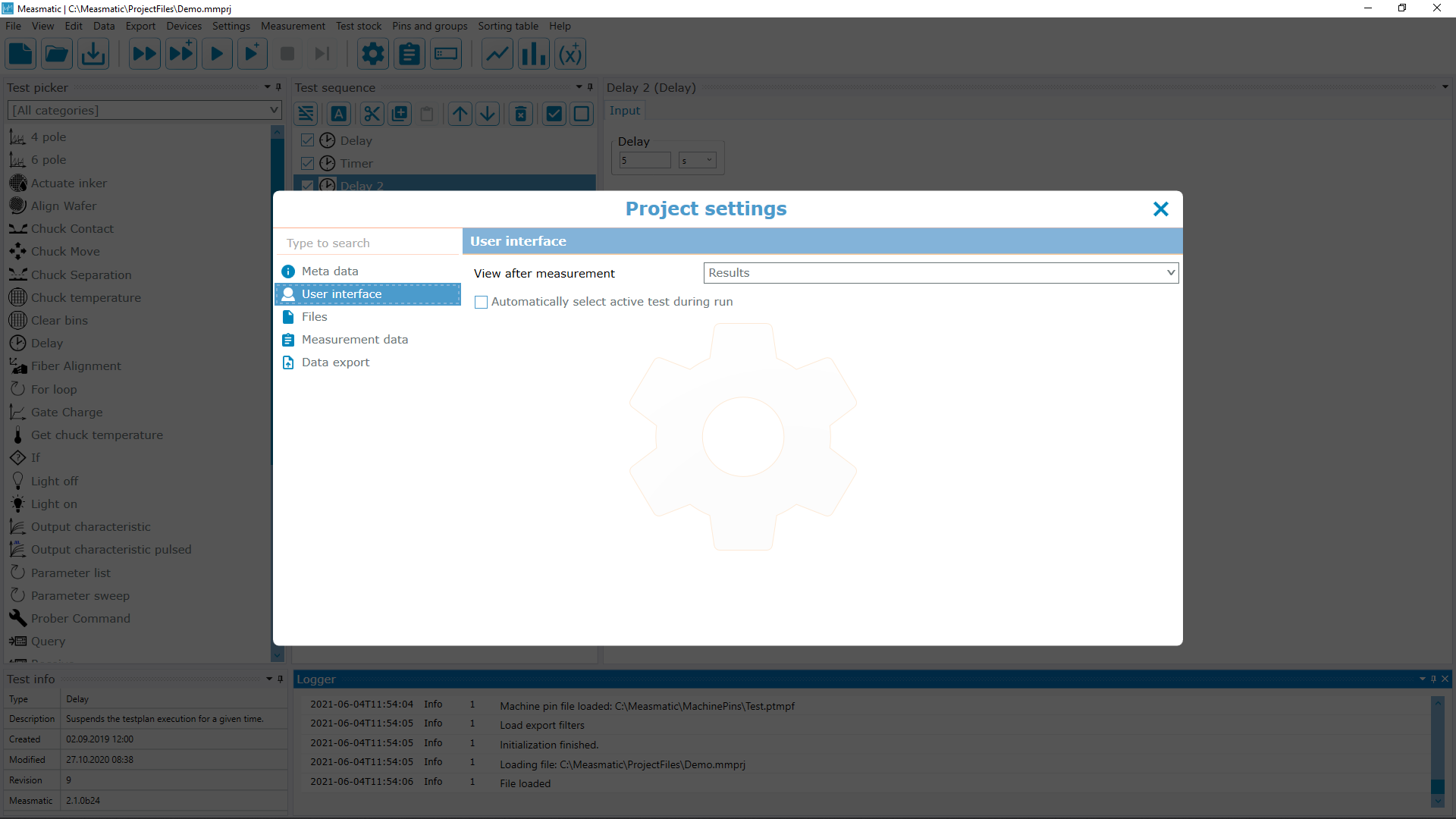

Project Settings - User Interface

Function	Description
View after measurement	Defines the Measmatic default screen that will be brought to the front after the test is finished
Automatically select active test during run	Active test is selected automatically for faster editing

Table: Project Settings - User Interface

Files

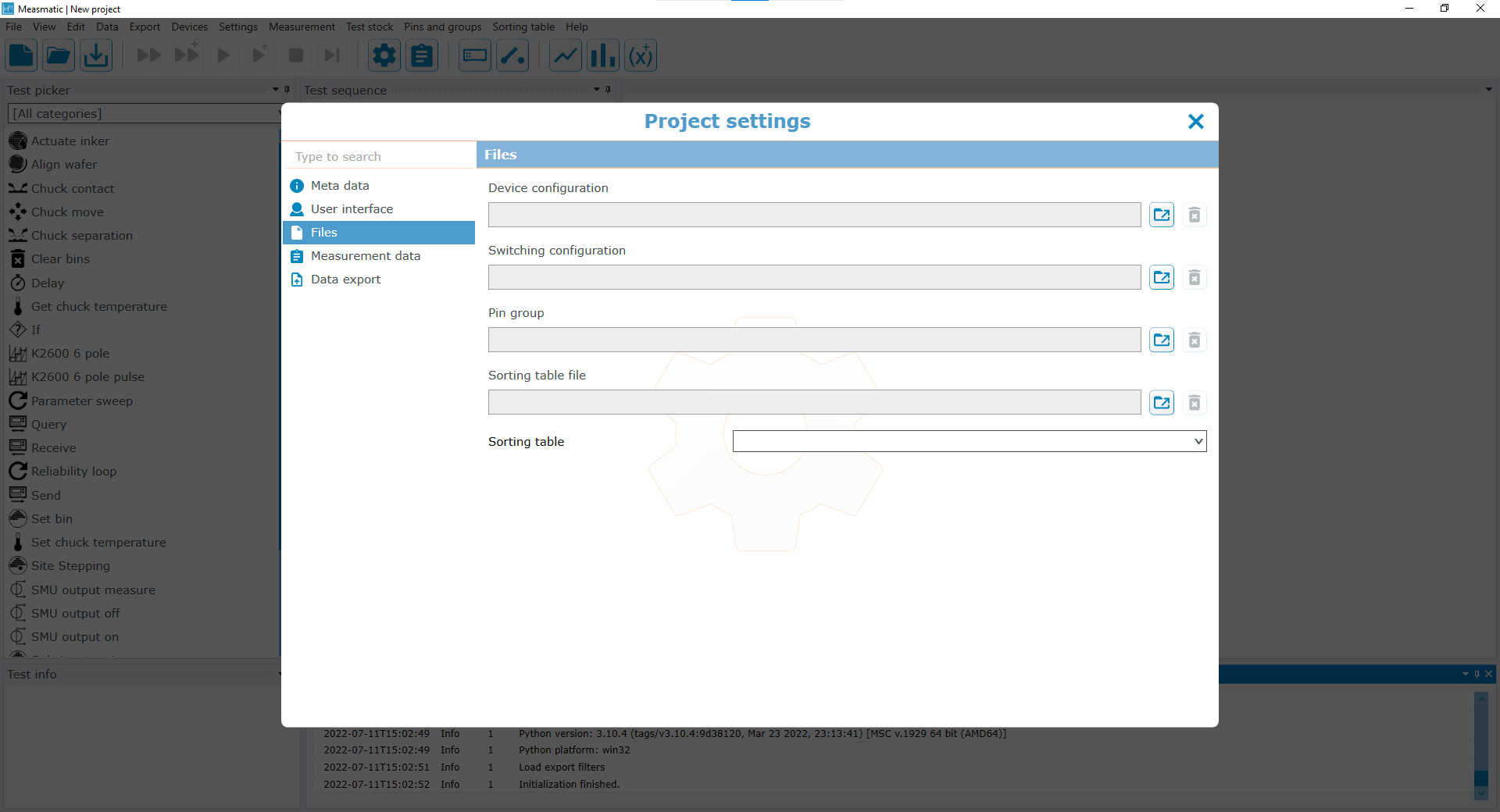

Project Settings - Files

Function	Description
Device configuration	Select a device configuration file (*.mmcfg, see device manager)
Switching configuration	Select a switching configuration file (*.mmscfg, see switch configuration)
Pin group	Selected Pin group file (*.ptpgf, see pins-and-groups)
Sorting table file	The file location of the Sorting table file that is assigned to the project
Sorting table	The dropdown menu lists all existing sorting tables that can be selected from the file

Table: Project Settings - Files

Measurement data

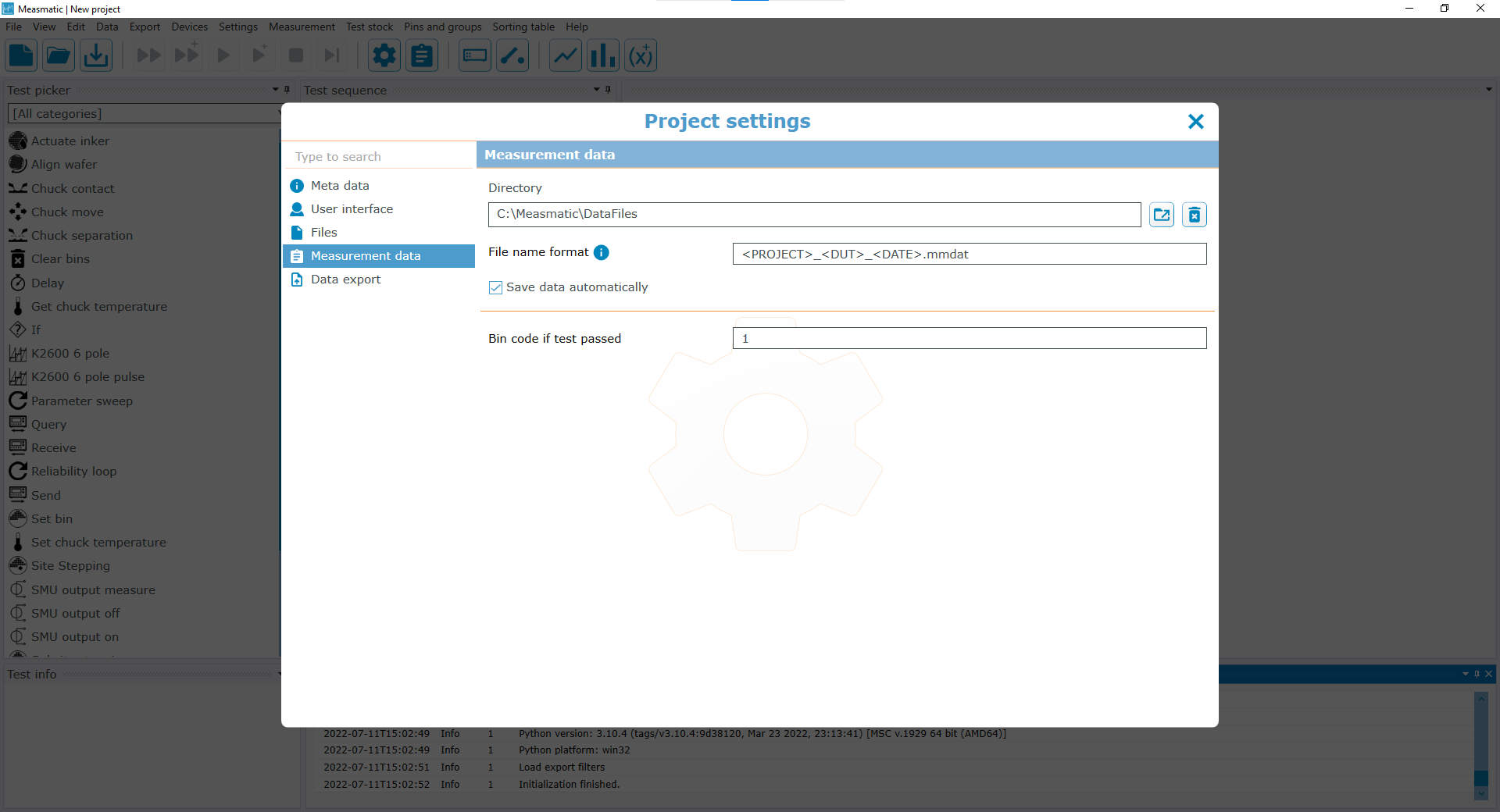

Project Settings - Measurement Data

Function	Description
Directory	Directory where the measurement data will be stored
File name format	User-defined file name format for the measurement data file. Clicking the button will show a list of all allowed placeholders
Save data automatically	If enabled, the data will be saved automatically after a test sequence run
Bin code if test passed	Defines the numerical bin code which is assigned if the test sequence completes with no errors.

Table: Project Settings - Measurement Data

Data export

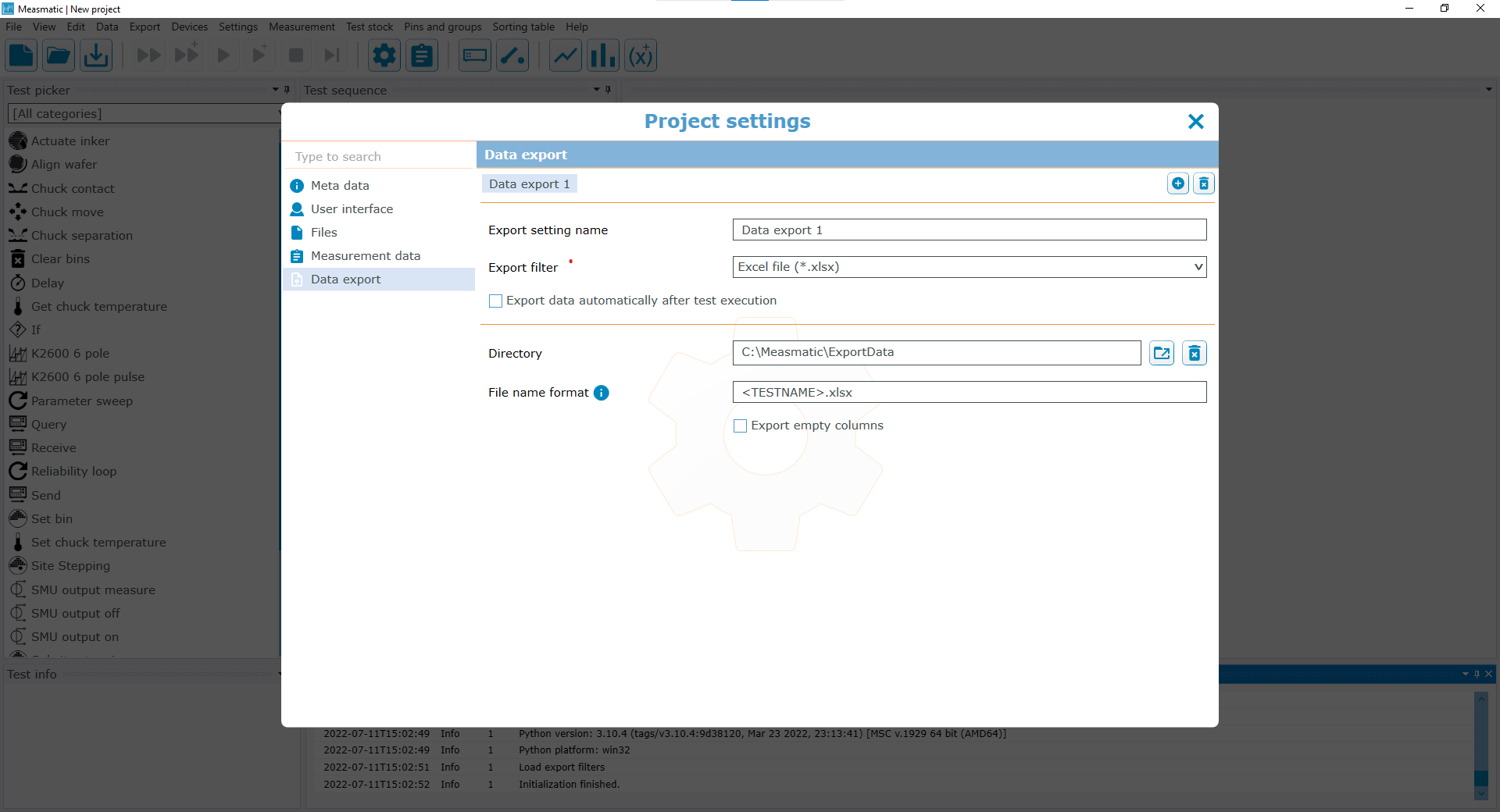

Project Settings - Data export

Function	Description
Data Export (1 to n)	Allows up to n different export filter settings (e.g. for saving as .csv and .png). Filters can be added and deleted by the icons on the right side.
Export filter	Selectable export filter dropdown list to define the export data appearance
Export Data automatically	If enabled, the data will be exported automatically after a test sequence run

Table: Project Settings - Data export

Each export filter may define its own settings which are then shown in the bottom part of this dialog. The example shows the options provided by the Excel export filter.
