Device manager

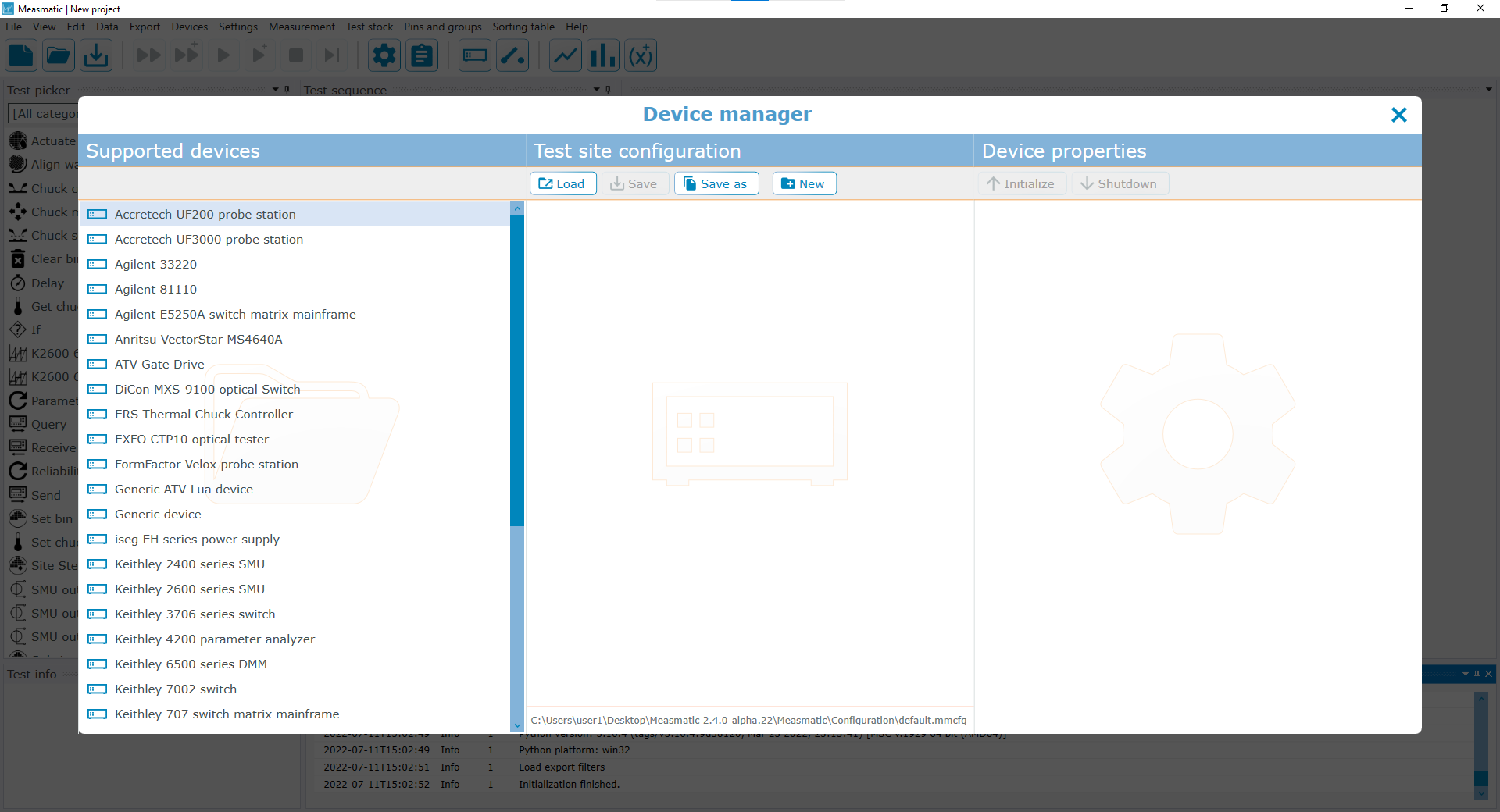

The device manager menu is used to configure a user-specific measurement device setup. The user can load and save several device configurations depending on the used hardware.

Supported devices#

Measmatic supports the setup of various devices via TCPIP, GPIB or RS232. For all other devices that are not listed below, the user is able to create a generic device communication.

• Accretech UF200 probe station

• Accretech UF3000 probe station

• Agilent 33220

• Agilent 81110

• Agilent E5250A switch matrix mainframe

• Anritsu VectorStar MS4640A

• ATV Gate Drive

• Keithley 6500 series DMM

• Keithley 707 switch matrix mainframe

• Keithley 708 switch matrix mainframe

• Keithley 7510 series DMM

• Keysight B2900B series SMU

• Keysight N774-C series optical power meter

• DiCon MXS-9100 optical switch

• Keysight N777-C series tunable laser

• ERS thermal chuck controller

• EXFO CTP10 optical tester

• FormFactor Velox probe station

• iseg EH series power supply

• Keithley 2400 series

• Keithley 2600 series SMU

• Keithley 3706 series switch

• Keysight PNA vector network analyzer

• MB Technologies HVM0612

• MPI Sentio probe station

• R&S ZVA/ZNA vector network analyzer

• Rigol DG1000Z

• Rigol DP 800 power supply

• Tektronix MDO Oscilloscope

• Keithley 4200 parameter analyzer

• Wavelabs Sinus 220

To add a device to the test configuration, it can be simply placed via drag and drop inside the test site configuration and configured individually.

Test site configuration#

The test site configuration allows the user to load, save or create device configurations to allow an easier and faster setup for different tests. The configuration file will be saved as Measmatic config file (*.mmcfg). Devices can be placed via drag and drop from the list of supported devices. Selecting a device in the test site configuration with a left button click updates the device properties that can be changed individually. With a right button click on a device, the option is displayed to remove the selected device. Devices can also be deleted with the keyboard "DEL" button.

Icon	Description
	Open a device configuration file
	Save the current configuration
	Save the current tests site configuration into a user-defined config file
	Create a new test site configuration

Device properties#

The connection of each device can be initialized or closed individually by using the functions "Initialize" and "Shutdown" on top of the device properties menu. Depending on the selected device, the properties menu displays the necessary settings to communicate with the hardware.

Group	Caption	Description
General	Name	Specific identifier for the device
Communication settings	Connection	Connection Type (RS-232, TCP/IP or GPIB)
	Timeout[s]	Waiting time for the device until the Measmatic application displays a timeout
	IP address	[Only applicable when TCP/IP is selected] IP-Address of the connected device
	Port	[Only applicable when TCP/IP is selected] Used port number of the device connection
	GPIB address	[Only applicable when GPIB is selected] GPIB-Address of the connected device
	COM port	[Only applicable when RS-232 is selected] Used COM-Port for communicating with the device
	Baud rate	[Only applicable when RS-232 is selected] Baud rate for communicating with the device
	Stop bits	[Only applicable when RS-232 is selected] Amount of stop bits (None, 1, 1.5 or 2)
	Parity	[Only applicable when RS-232 is selected] Parity setup (None, Odd, Even, Mark or Space)
	Data bits per byte	[Only applicable when RS-232 is selected] Amount of databits per byte (5, 6, 7 or 8)
	Handshake	[Only applicable when RS-232 is selected] Communication handshake setup (None, XON/XOFF, RTS or RTS with XON/XOFF)
TSP Settings	Node number	[Only applicable when a Keithley device is selected] Specifies the Node number that is set on the device
	Default TSP master device	[Only applicable when a Keithley device is selected] If activated, the current device is the Master that can be used to distribute the measurement tasks via TSP-link to the connected Slaves. Only a single master device can be configured, other master devices will be switched to slave-mode if activated
Channel configuration	Configuration	[Only applicable when a Keithley device is selected] Defines if a single or dual source is connected
	SMU A	[Only applicable when a Keithley device is selected] Identifier that can be used to address the (Sub)-SMU
	SMU B	[Only applicable when a Keithley device is selected] Identifier that can be used to address the (Sub)-SMU
	Channel 1-3	[Only applicable when a Rigol or Agilent device is selected] Identifier that can be used to address the (Sub)-Channels
GPIB board configuration	Manufacturer	[Only applicable when GPIB is selected] Specifies the GPIB-Card in the PC (Adlink or NI)
	Name	[Only applicable when GPIB is selected] GPIB-Board Name
	GPIB address	[Only applicable when GPIB is selected] GPIB address of the PC PCI-Card

Table: Device properties
